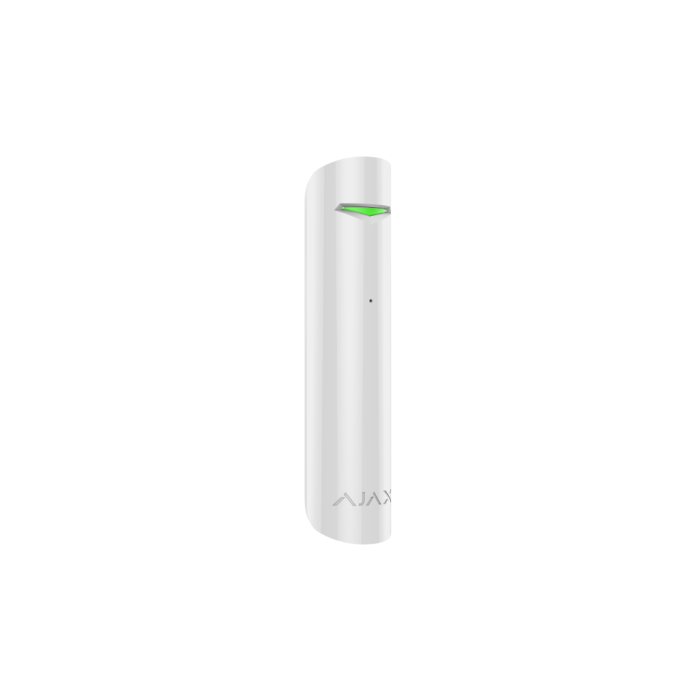

Ajax GlassProtect lasirikkoilmaisin valkoinen

Lataa technical data sheet (EN) tästä:

technical data sheet

Classification: Surface sound radio channel security detector
Type of detector: Wireless
Installation method: Indoors
Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element: Electret microphone
Break detection distance: Up to 9 m
Alarm signal delivery time: 0.15 s
Sensitivity: Adjustable, 3 levels
Detection angle: 180°
Power supply: Battery: CR123A battery, 3 V
Battery life: Up to 7 years
Jeweller radio technology: Communication range with central unit — up to 1,000 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Detector polling period — 12−300 s.
Temperature sensor Available
Operating temperature range: From -10°С to +40°С
Permissible humidity: Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing
Dimensions: Diameter: 20 mm, Height: 90 mm
Weight 30 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Service life: 10 years
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-2-7-1:2012
EN 50131-6:2017 (in accordance with paragraphs of the standard)
EN 50131-5-3:2017
PD 6662:2017 (in terms of requirements for security system devices)
BS EN 50131
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 50385:2002/EN 62479:2010
Environmental class according to EN 50131 II

Complete set
GlassProtect glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
External contact
Installation set
User's guide
