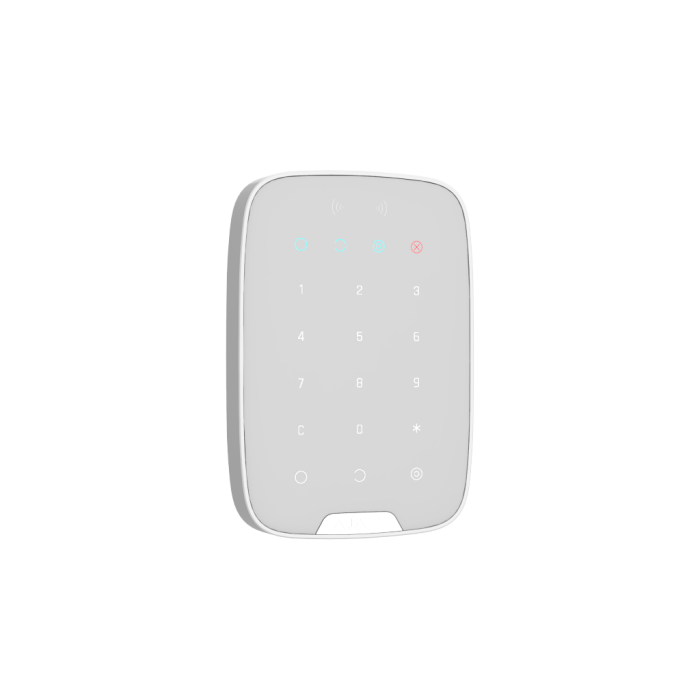

Ajax KeyPad näppäimistö valkoinen

Lataa data sheet (EN) tästä:

data sheet

Classification: Radio channel touch keypad
Type of keypad: Wireless, touch
Installation method: Indoors
Compatibility: Operates with all Ajax hubs, and range extenders
Number of buttons: 15
Duress code: Yes
User Passcode: Yes
Protection against passcode guessing: Yes
Arming/disarming indication: Yes
Power supply: Battery: 4 × ААA batteries, 3 V (batteries are installed in pairs)
Battery life: Up to 2 years
Jeweller radio technology: Communication range with central unit — up to 1,700 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Keypad scanning period — 12 - 300 s.
Temperature sensor: Available
Operating temperature range: From -10°С to +40°С
Permissible humidity: Up to 75%
Anti-sabotage: Protection against fraud
Jamming detection: Tamper-resistant
Remote setting and testing
Dimensions: 150 × 103 × 14 mm
Weight: 197 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
Service life: 10 years
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-3:2009
EN 50131-5-3:2017
PD 6662:2017 (in terms of requirements for security system devices)
BS EN 50131
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 50385:2002/EN 62479:2010
Environmental class according to EN 50131 II

Complete set
KeyPad touch keyboard
SmartBracket mounting panel
4 ААА batteries (pre-installed)
Installation set
User's guide
