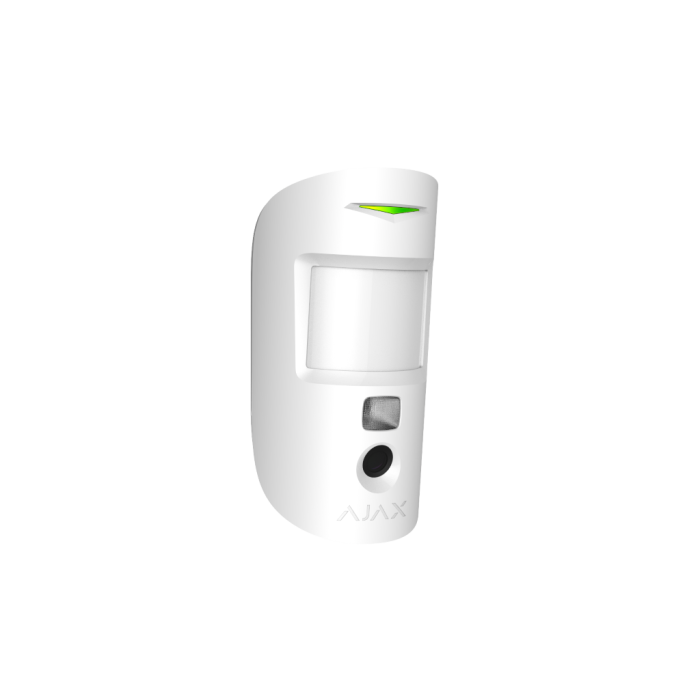

Ajax MotionCam liikeilmaisin kameralla valkoinen

Lataa data sheet (EN) tästä:

data sheet

Classification: Electro-optical combined radio channel security detector with a photo camera
Detector type: Wireless
Installation: Indoors
Motion detection distance: Up to 12 m
Pet immunity: Weight: up to 20 kg, Height: up to 50 cm
Compatibility: Only with Hub 2, Hub 2 Plus
Sensing element: PIR sensor
Detection angles: Horizontal — 88.5°, Vertical — 80°
Time for motion detection: From 0.3 to 2 m/s
Camera view angle: 90°
Alarm signal delivery time: 0.15 sec
Photo verification: Time to deliver a photograph with default settings: up to 9 sec
Photo quality: up to 640 × 480
Pictures in a series: 1-5 pcs
IR backlight for night mode pictures: Available
Sensitivity: Adjustable, 3 levels
Recommended installation height: 2.4 m
Power supply: Batteries: CR123A (×2), 3 V
Battery life: Up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)
Jeweller radio technology: Communication range with detectors: up to 1,700 m in the line of sight. Two-way communication between devices. Operating frequencies: 868.0 - 868.6 MHz. Self-adjusting RF output power: up to 20 mW. Block encryption based on AES algorithm. Detector polling period: 12−300 s. Frequency hopping
Wings radio technology: Transmission of visual alarm verifications
Temperature sensor: Available
Operating temperature range: From -10°C to +40°C
Operating humidity: Up to 75%
Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant
CMS compatibility: CMS connectivity: Contact ID, SIA (DC-09). CMS software supporting visual alarms verification
Remote configuration and testing
Protection class: IP50
Dimensions 135 × 70 × 60 mm
Weight 167 g
Warranty: Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
Service life: 10 years
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-2-2:2017
EN 50131-6:2017 (in accordance with paragraphs of the standard)
EN 50131-5-3:2017
PD 6662:2017 (in terms of requirements for security system devices)
BS EN 50131
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 50385:2002/EN 62479:2010 (ЕМF)
Environmental class according to EN 50131 II

Complete Set
MotionCam motion detector
SmartBracket mounting panel
x2 CR123A batteries (pre-installed)
Installation kit
Quick Start Guide
