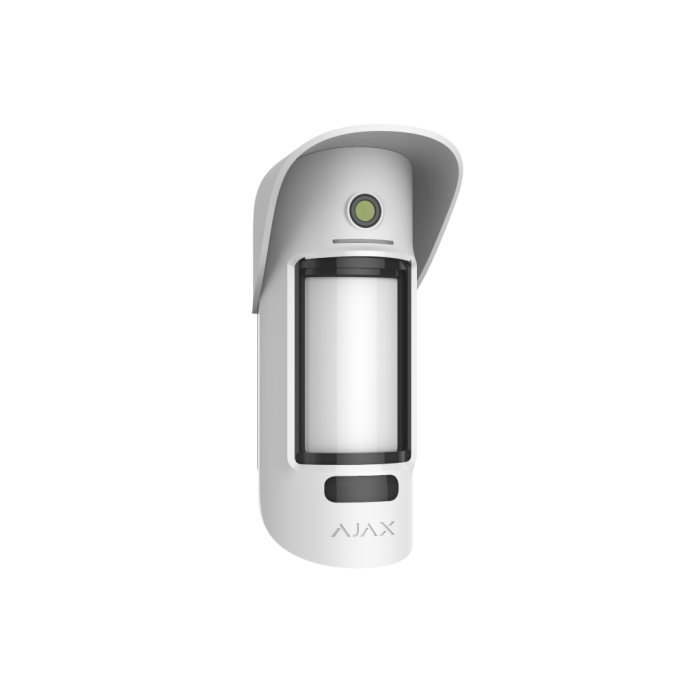

Ajax MotionCam Outdoor liikeilmaisin kameralla ulkokäyttöön valkoinen

Lataa technical data sheet (EN) tästä:

technical data sheet

Classification: Electro-optical radio channel security detector
Type of detector: Wireless
Installation method: Outdoors / indoors
Recommended installation height: 0.8 – 1.3 m
Compatibility: Hub 2, Hub 2 Plus (Not compatible with ReX radio signal range extender)
Sensing element: 2 × PIR sensor
Motion detection distance: Adjustable, from 3 to 15 m
Pet immunity: Animals up to 80 cm tall
Sensitivity: Adjustable, 3 levels
Motion detector’s viewing angle: Horizontal — 90°, Vertical — 80°
Camera’s angle: Horizontal — 105°, Vertical — 50°
TV distortion (EBU standard): Barrel, –17%
Photo in case of alarm
Photo resolution: 320 × 176 pixels (by default), 640 × 352 pixels, Shooting series up to 5 photos
Infrared light for shooting in the dark Available
Power supply: 4 × CR123A batteries, Supply voltage 6 V
Battery life: Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)
Jeweller radio technology: Communication range with a hub — up to 1,700 m in an open space. Two-way communication between hub and device. Operating frequencies — 868.0–868.6 MHz (Depends on the region of sale). Self-adjusting RF output power — up to 20 mW. Block encryption with a dynamic key. Detector polling period — 12–300 s. Frequency hopping.
Alarm delivery time 0.15 s
Wings radio technology: Transmission of a series of photos. Photo delivery time with a default settings: up to 9 seconds.
Temperature sensor Available
Operating temperature range: From –25°С to +60°С
Operating humidity Up to 95%
Protection class IP55
Anti-sabotage
Anti-masking
Protection against forgery
Jamming detection
Tamper-resistant
Remote configuration and testing Available
CMS compatibility
CMS connectivity: Contact ID, SIA (DC-09)
CMS software supporting visual alarms verification
Dimensions 206 × 108 × 93 mm
Weight 470 g
Warranty 24 months from the date of sale
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-2-2:2017
EN 50131-6:2017 (in accordance with paragraphs of the standard)
EN 50131-5-3:2017
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 62311:2008
EN 62479:2010 (ЕМF)
Environmental class according to EN 50131 IV

Complete set
MotionCam Outdoor motion detector
SmartBracket mounting panel
Hood visor
4 × CR123A batteries (pre-installed)
Installation kit
User’s guide
