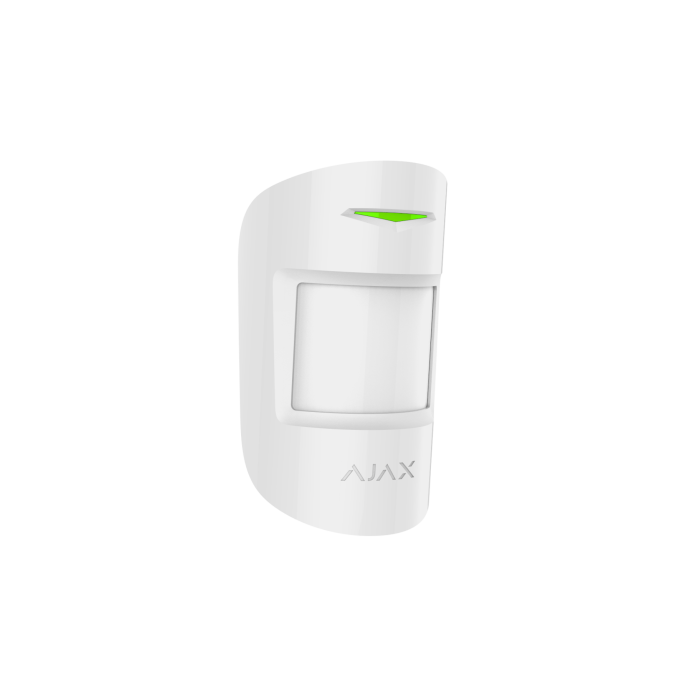

Ajax MotionProtect Plus liikeilmaisin valkoinen

Lataa data sheet (EN) tästä:

data sheet

Classification: Electro-optical combined radio channel security detector
Type of detector: Wireless
Installation method: Indoors
Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element: PIR sensor, microwave sensor (24 GHz)
Alarm signal delivery time: 0.15 s
Motion detection distance: Up to 12 m
Detection angles: Horizontal — 88.5°, Vertical — 80°
Time for motion detection: From 0.3 to 2 m/s
Sensitivity: Adjustable, 3 levels
Recommended installation height: 2.4 m
Pet immunity: Weight — up to 20 kg, Height — up to 50 cm
Power supply: Battery: CR123A battery, 3 V
Battery life: Up to 5 years
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Detector polling period — 12 - 300 s
Temperature sensor: Available
Operating temperature range: From −10°С to +40°С
Permissible humidity: Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing
Dimensions 110 × 65 × 50 mm
Weight 96 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Service life: 10 years
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-2-4:2008
EN 50131-5-3:2017
PD 6662:2017 (in terms of requirements for security system devices)
BS EN 50131-2-4:2020
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 50385:2002 / EN 62479:2010 (ЕМF)
Environmental class according to EN 50131 II

Complete set
MotionProtect Plus motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide
