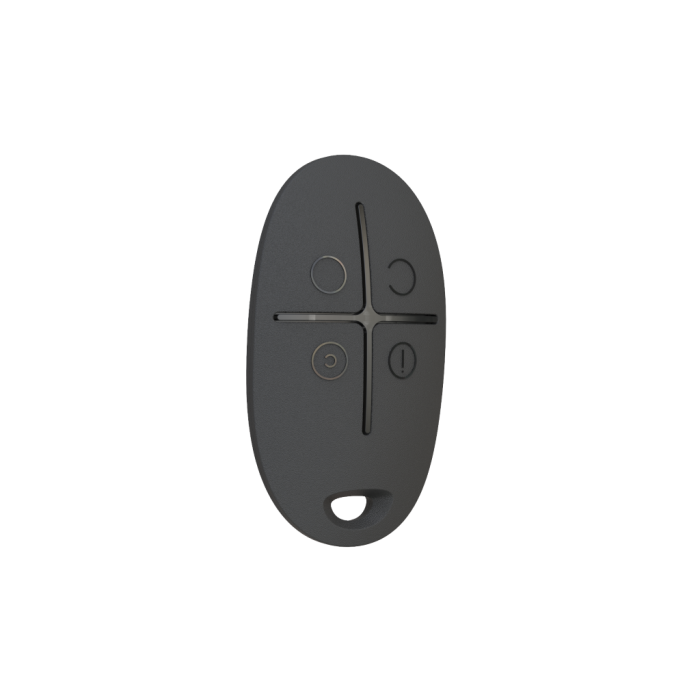

Ajax SpaceControl musta

Lataa data sheet (EN) tästä:

data sheet

Classification: Four-button key fob with command delivery indication
Compatibility: Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge
Number of buttons: 4
False alarm prevention: Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)
Deactivation of the panic button: Available
Power supply: Battery: CR2032 battery, 3 V
Battery life: Up to 5 years
Jeweller radio technology
Communication range with central unit — up to 1,300 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Device polling period — 12 - 300 s.
Operating temperature range: From -25°С to +50°С
Permissible humidity: Up to 95%
Dimensions: 65 × 37 × 10 mm
Weight: 13 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Service life: 10 years
Compliance with the security alarm standards
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-3:2009
EN 50131-5-3:2017
PD 6662:2017 (in terms of requirements for security system devices)
BS EN 50131
Security Grade (SG) 2
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 62368-1:2014/A11:2017
EN 50385:2002/EN 62479:2010
Environmental class according to EN 50131 III

Complete set
SpaceControl keyfob
CR2032 battery (pre-installed)
User's guide
