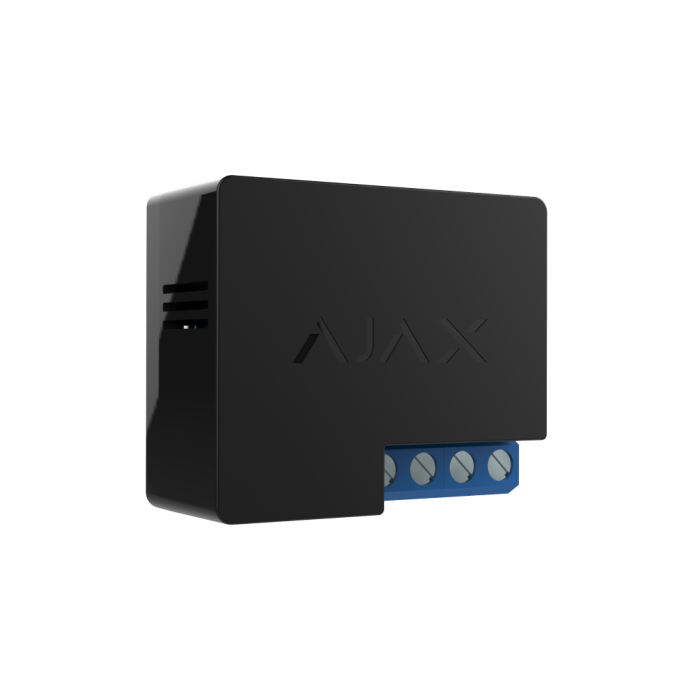

Ajax Relay

Lataa data sheet (EN) tästä:

data sheet

Classification: Radio channel relay unit
Device type: Wireless
Installation method: Into electric switchboard, junction box
Compatibility: Operates with all Ajax hubs, and range extenders
Actuating element: Electromagnetic relay
Relay service life: 200,000 switch-ons
Voltage protection: Max — 36.5 V, min — 6.5 V
Maximum load current: 5A at 36V DC, 13A at 230V AC
Maximum current protection: No
Maximum temperature protection: > 65°C at the place of installation
Electric power meter function: No
Energy consumption parameter check: Voltage
Power supply: 7 - 24 V (DC only)
Operation modes: Impulse, Bistable
Contact state: Normally open, Normally closed
Adjustable pulse duration: 0.5–255 sec
Jeweller radio technology: Communication range with central unit — up to 1,000 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 25 mW. Block encryption based on AES algorithm. Device scanning period — 12 - 300 s
Operating temperature range: From 0°С to +64°С
Permissible humidity: Up to 75%
Protection class of body: IP20
Anti-sabotage
Protection against fraud
Jamming detection
Remote setting and testing
Dimensions: 39 × 33 × 18 mm
Weight: 25 g
Warranty: Replacement and repair within 24 months of the date of sale.
Service life: 10 years
compliance with standards
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 60730-1:2016+A1:2019
EN 62479:2010

Complete set
Relay
Installation set
User's guide
