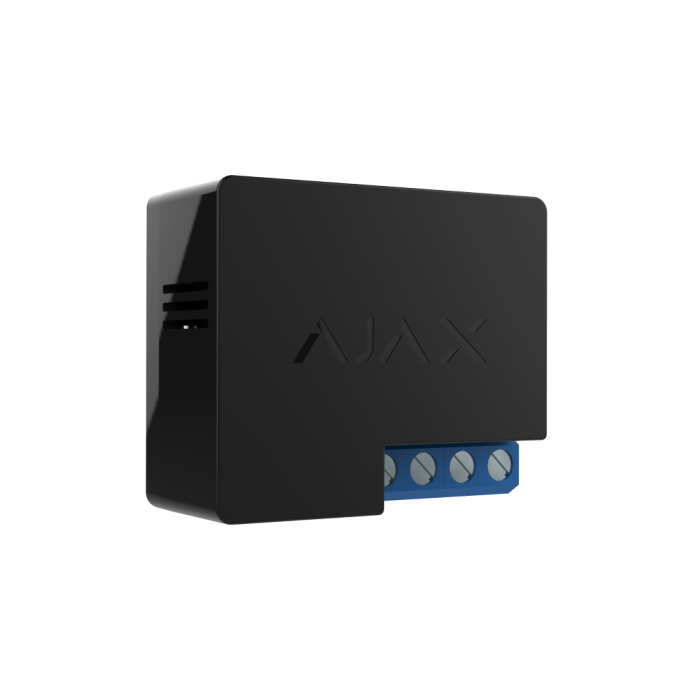

Ajax WallSwitch

Lataa data sheet (EN) tästä:

data sheet

Classification: Radio channel relay unit
Device type: Remote-controlled
Installation method: Into wall plate
Compatibility: Operates with all Ajax hubs, and range extenders
Actuating element: Relay
Voltage protection: For 230 V mains: max — 264 V, min — 161 V. For 110 V mains: max — 126 V, min — 77 V
Relay service life: 200,000 switch-ons
Maximum load current: 13 A
Maximum current protection: Yes (13 A)
Maximum temperature protection >65°C in the wall plate
Permissible power: Resistive load at 230 V — up to 3 kW, Resistive load at 110 V — up to 1.5 kW
Electric power meter function: Available
Energy consumption parameter check: Current, voltage, power consumption
Alarm signal delivery time: 0.15 s
Power supply: 110−230 V±10% 50/60 Hz
Operation modes: Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 5, 2020), Bistable
Contact state: Normally open, Normally closed
Adjustable pulse duration (firmware version 5.54.1.0 or higher): 0.5–255 sec
Jeweller radio technology: Communication range with central unit — up to 1,000 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 25 mW. Block encryption based on AES algorithm. Detector scanning period — 12 - 300 s.
Operating temperature range: From 0°С to +64°С
Permissible humidity: Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Protection class of body: IP20
Remote setting and testing
Dimensions: 39 × 33 × 18 mm
Weight: 30 g
Warranty: Replacement and repair within 24 months of the date of sale.
Service life: 10 years
compliance with standards
Radio Equipment Directive (RED)
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Electromagnetic Compatibility Directive (EMC)
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
EN 60730-1:2016+A1:2019
EN 62479:2010

Complete set
WallSwitch
Installation set
User's guide
